Yamaha DBR12 Active PA Speaker: 12" 1000w Loudspeaker

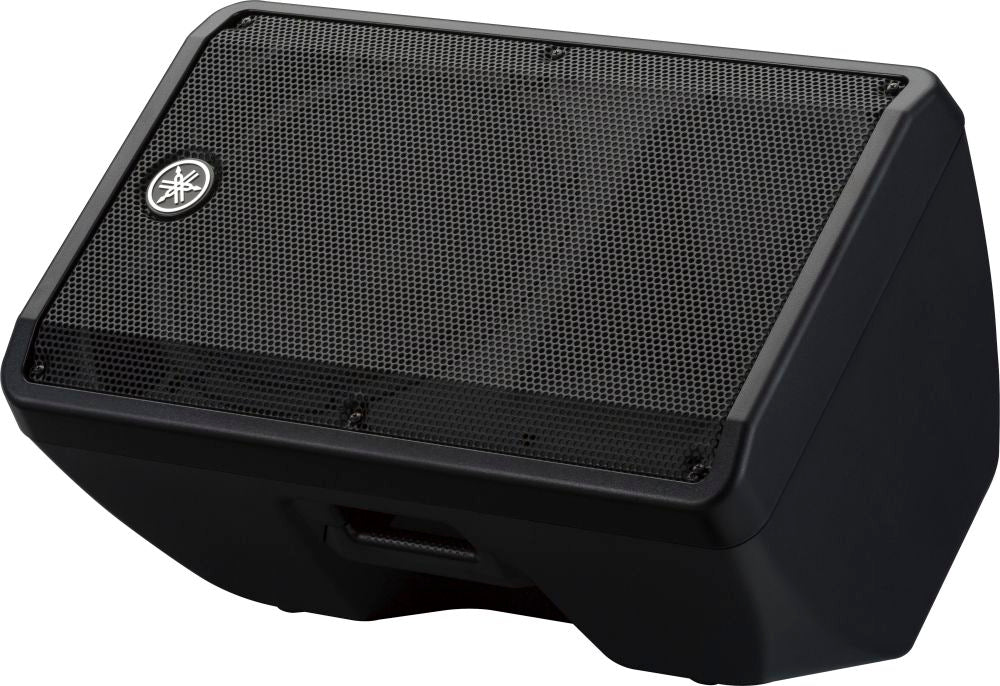

The DBR12 Active PA speaker features the same Yamaha state-of-the-art DSP technology inherited from its predecessors, ensuring superior performance and versatility, and safe, consistent operation. The DBR12 can project deep bass, clear midrange and accurate high frequencies to the outer-most edges of a very wide coverage area and can boast 1000W of power. The design incorporates an optimised 50° wedge angle for floor monitoring use and is also, for its size, the most portable powered speaker currently offered by Yamaha.
|
Speaker type |
2-way, Bi-amp powered speaker, Bass-reflex type |
|
|
Frequency range (-10dB) |
52Hz – 20kHz |
|
|
Nominal coverage |
Horizontal |
90° |
|
Vertical |
60° |
|
|
Components |
Low Frequencies |
Diameter:12" cone, Voice Coil:2", Magnet:Ferrite |
|
High Frequencies |
Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite |
|
|
Crossover |
2.1kHz: FIR-X tuning™ (linear phase FIR filter) |
|
|
Output power |
Dynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W) |
|
|
Maximum output level (1m; on axis) |
131dB SPL |
|
|

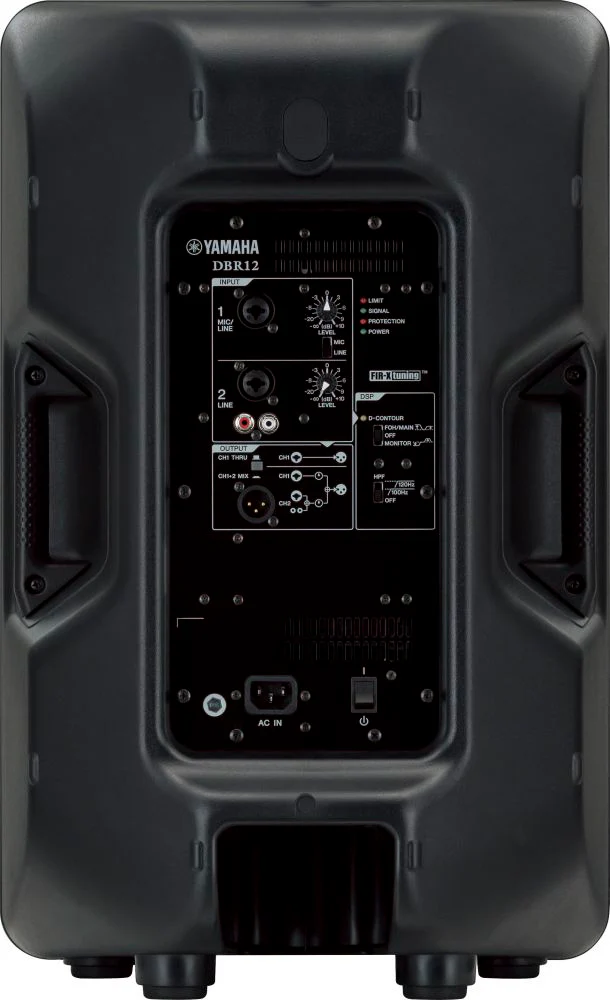

I/O connectors |
INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix) |
|
|
Processors |
D-CONTOUR: FOH/MAIN, MONITOR, OFF |
|
|
Heat dissipation |
Fan cooling, 4 speeds |
|
|
Power requirements |
100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz |
|
|
Power consumption |
74W(1/8 Power Consumption), 18W(Idle) |
|
|
Cabinet material |
Plastic |
|
|

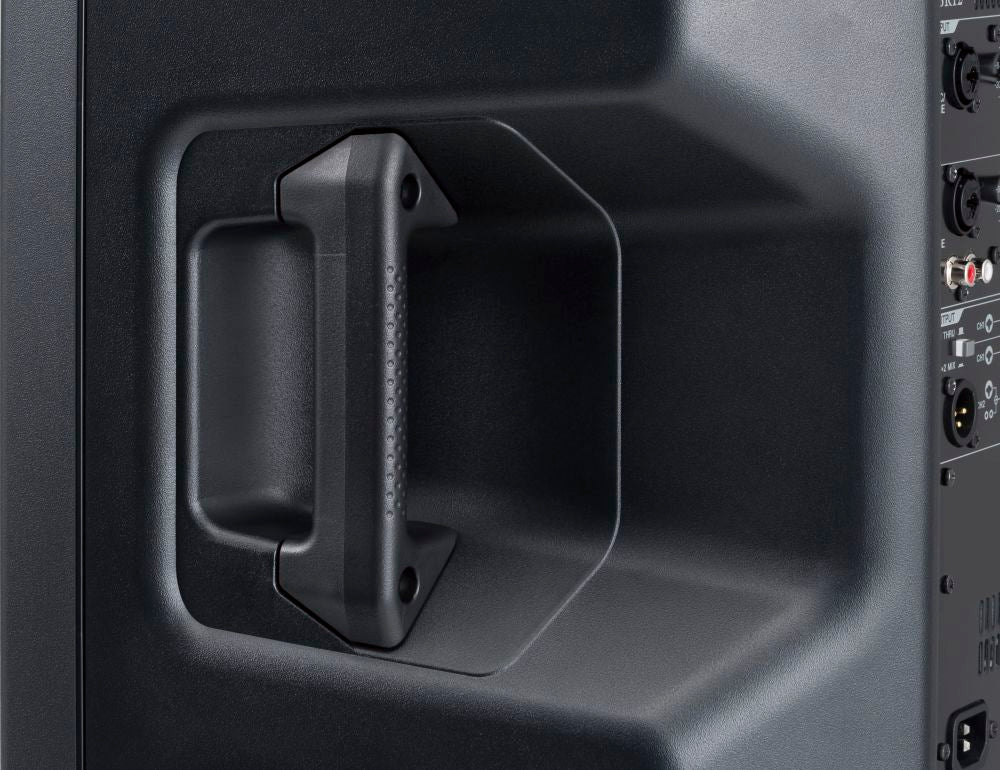

Handle |
Side x 2 |
|
|
Flying and mounting hardware |
Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts) |
|
|
Pole socket |
35mm (Bottom x 1) |
|
|
Dimensions |
Width |
376mm (14.8") |
|
Height |
601mm (23.7") |
|
|
Depth |
348mm (13.7") |
|
|
Net weight |
15.8 kg (34.8 lbs) |
|
|
Optional Accessories |
BBS251, BCS251, BWS251-300, BWS251-400 (Optional Speaker bracket) |
|
